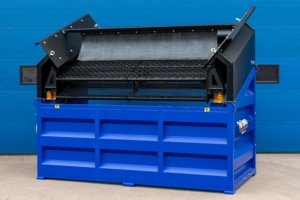

FleXiever MS40

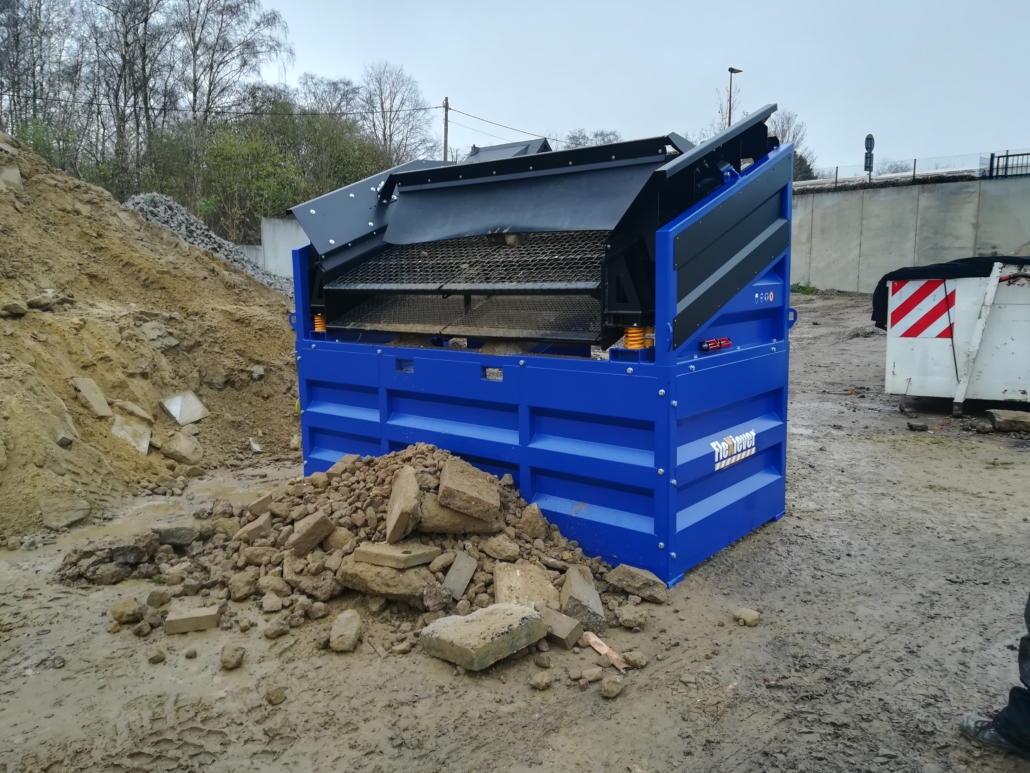

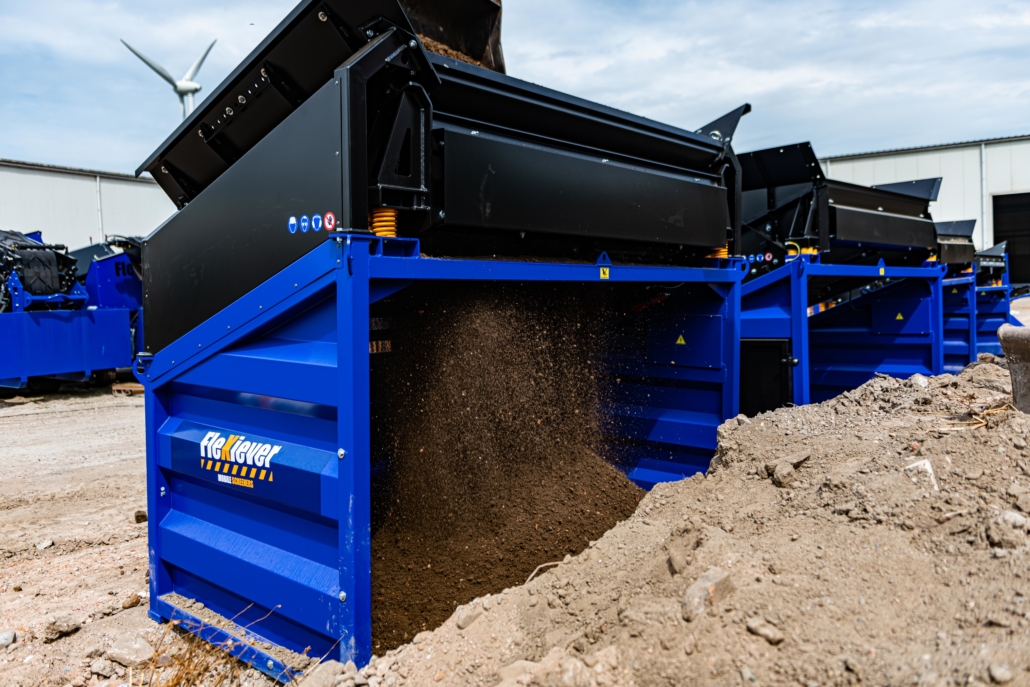

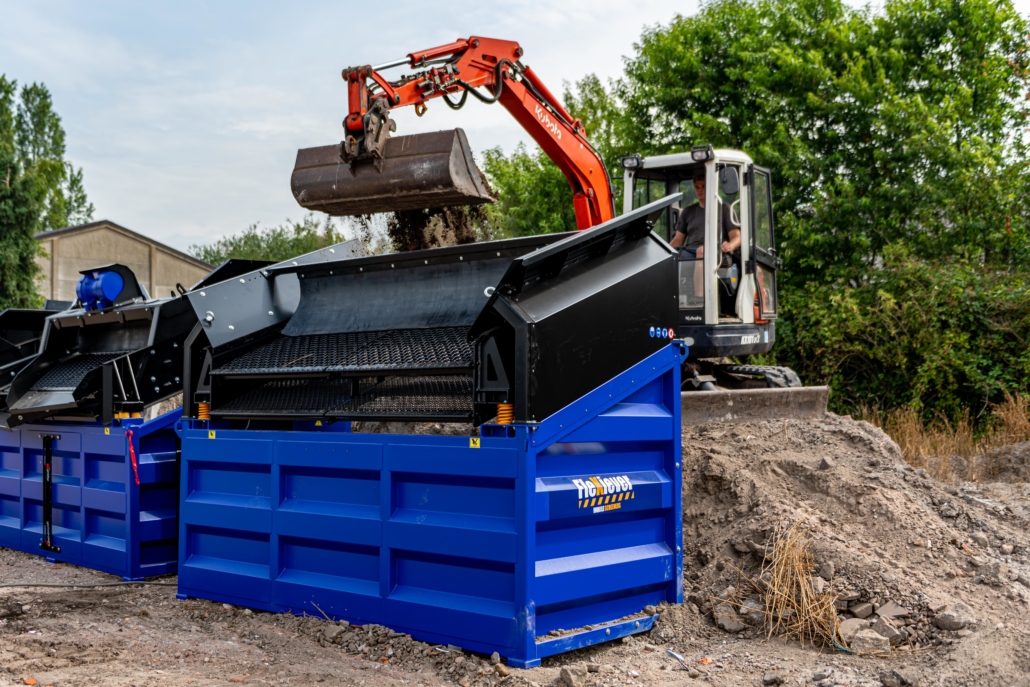

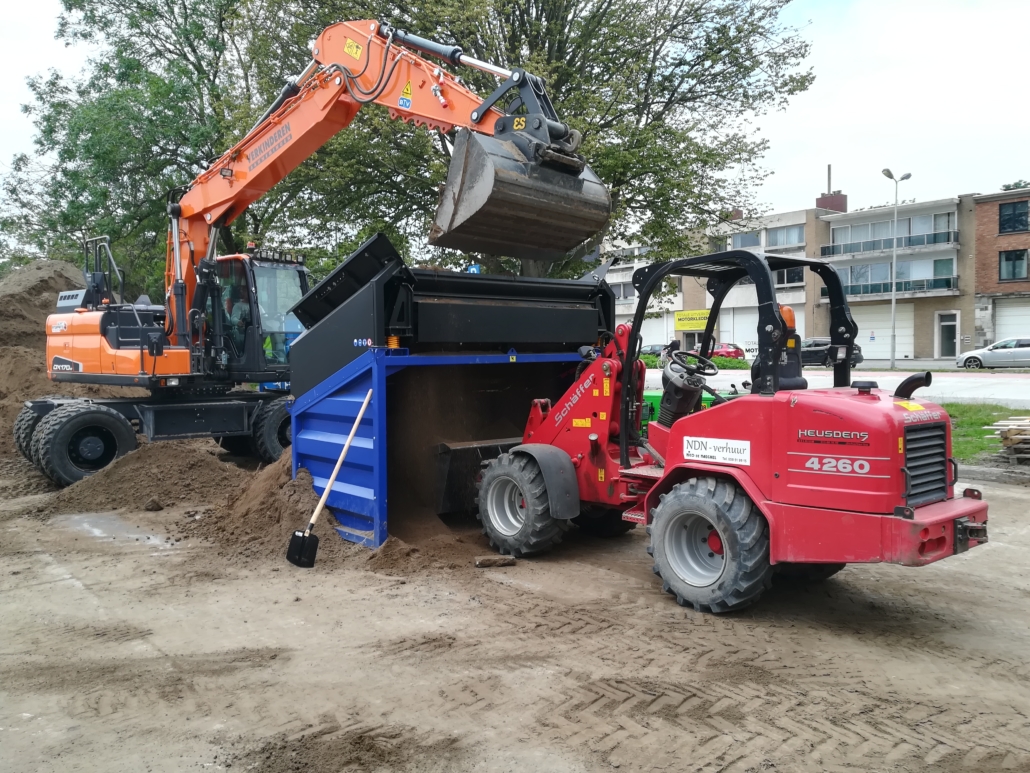

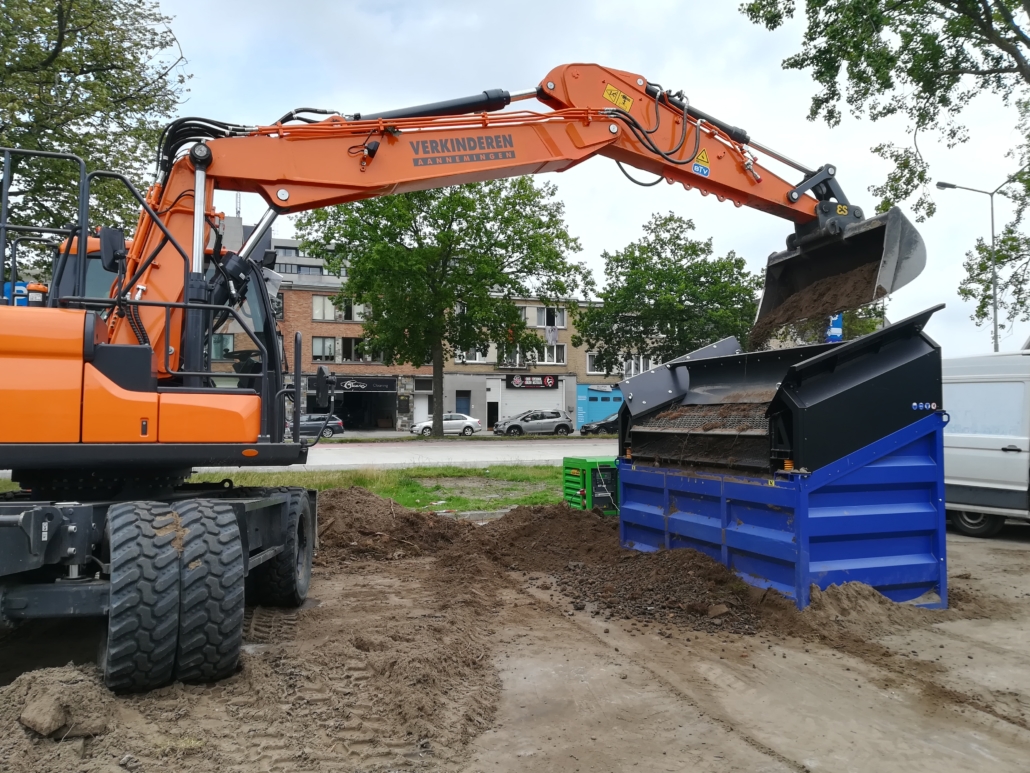

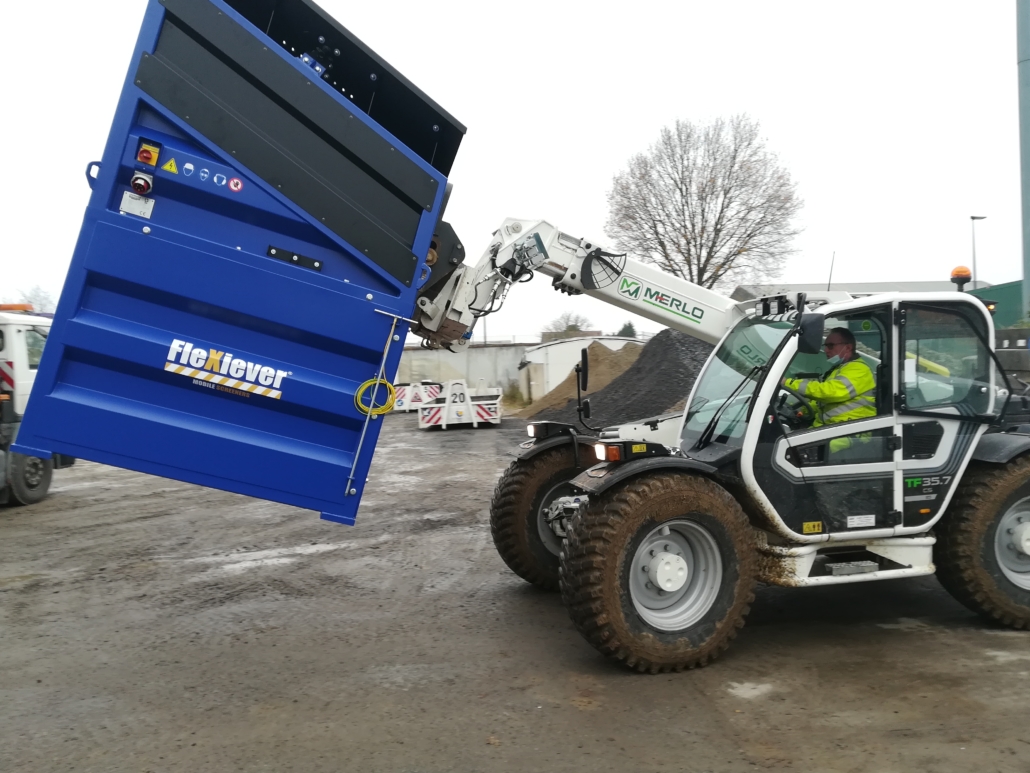

The Flexiever MS40 can be loaded with an excavator bucket of maximum 270cm wide and has a screening surface of 2 × 3,6m². The 1700kg machine can be moved with a forklift truck by using the standard attachment. Also available with an option to screen in 3 fractions.

>> Download the information sheet of MS40

View some videos

Details

Dimensions L x W x H: 3080 x 1650 x 2620 mm
Weight: 1700 kg
Screen area: 2200 x 1600 mm (2×3,6m²)
Screen angle: 20°
Mesh aperture : 10 – 16 – 20 – 25 – 32 – 40 – 50mm
Engine: 3 x 400V – 1,6kW
Maximum bucket width: 2700 mm
Capacity: 40 – 100 t/h
Dump height: 237 cm

Options

Generator: 3×400 V – 6,5 kVA – Petrol

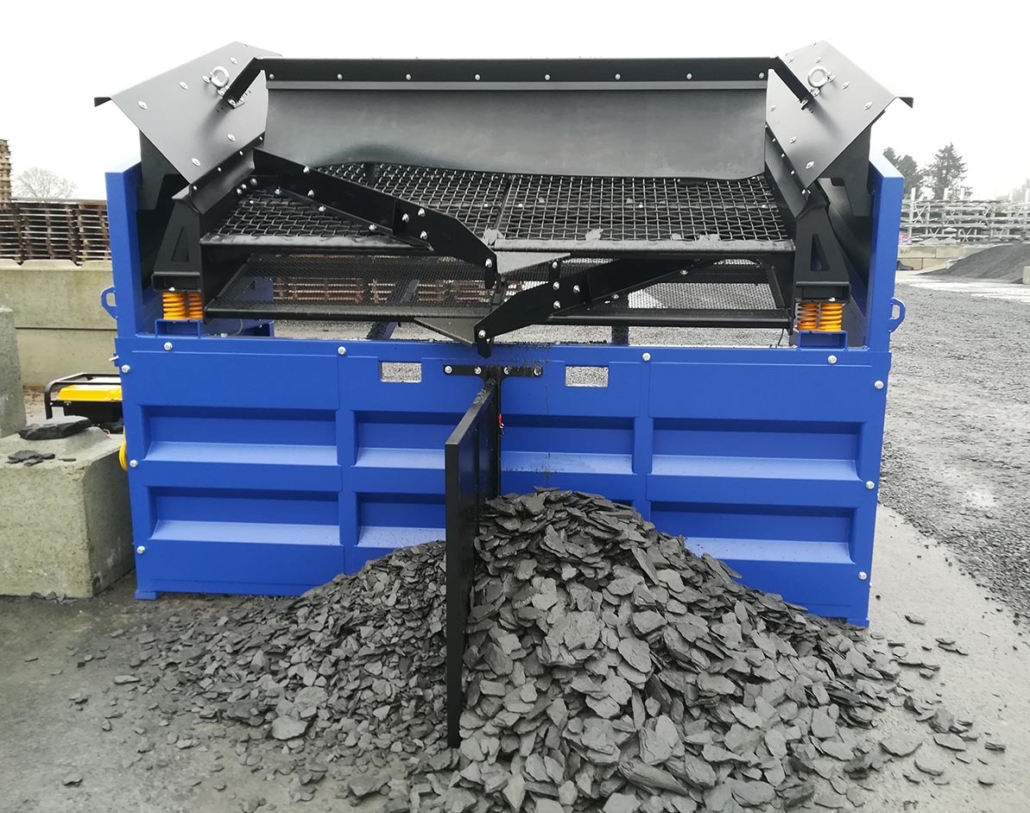

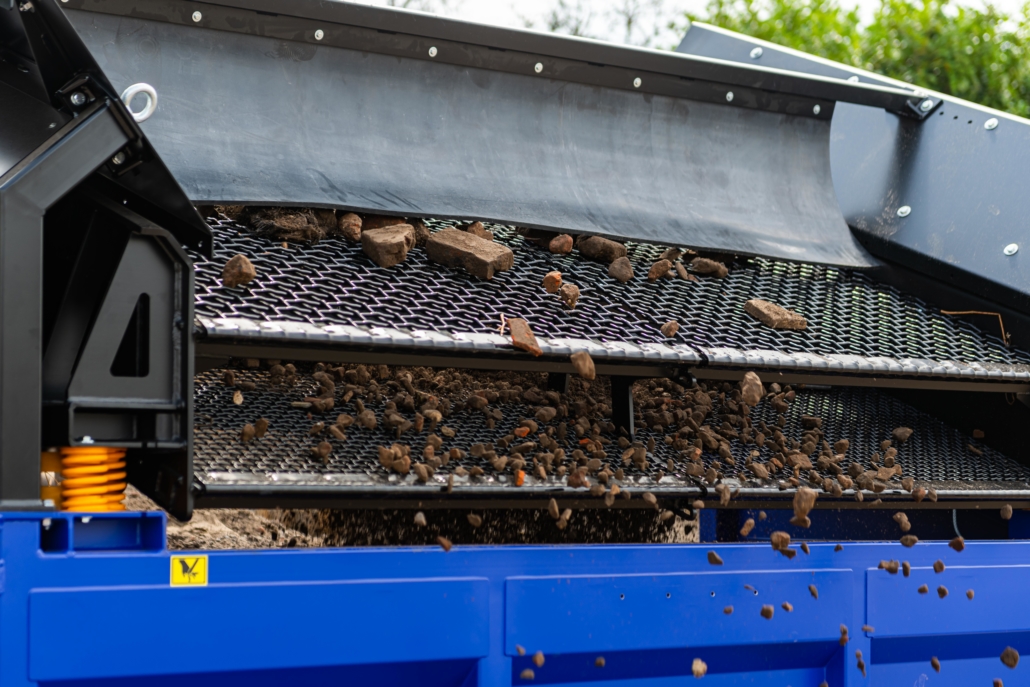

3-fractions frame
