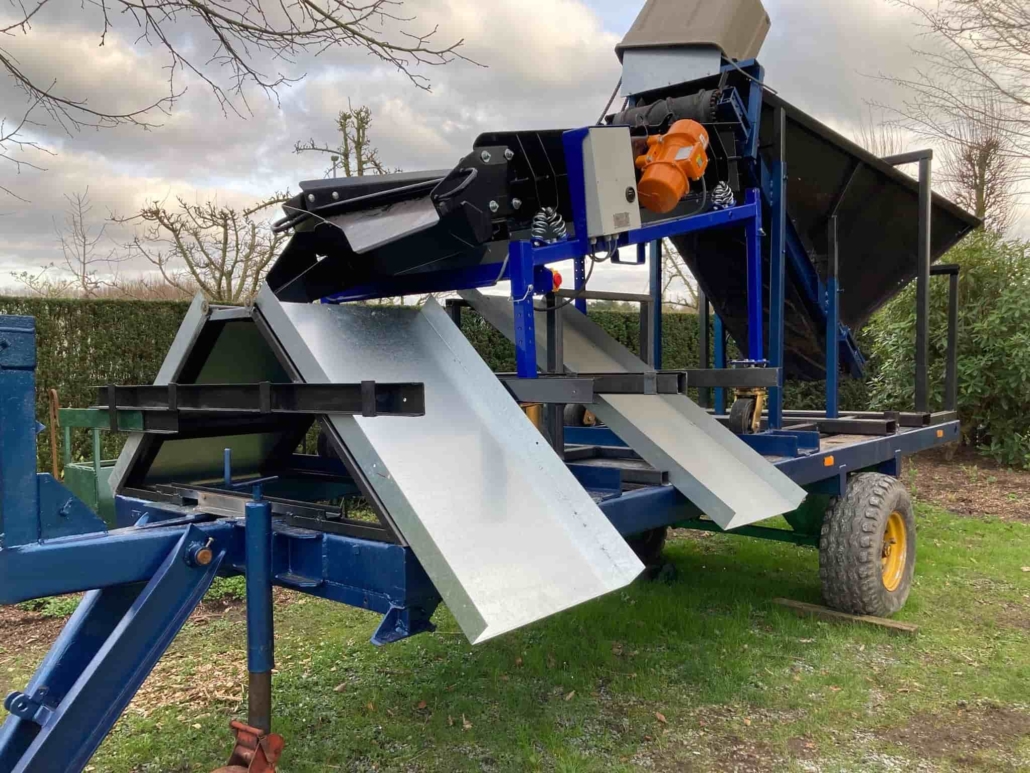

FleXiever Mini Screener 3 fractions

FleXiever Mini Screener Double Screen mobile screener

Compact screening in 3 fractions or developing a customized concept, the Mini Screener 3 fractions is the ideal basic machine for that. The basic frame can easily be built in between existing installations or it can be integrated into a fully customized construction with different possibilities in terms of feed and discharge of materials.

The mesh openings of the screening nets are available from 0.5×0.5mm, which ensures that the machine can be used for many industrial applications. Also, the nets can be changed easily and quickly.

>> Download the information sheet of Mini Screener 3 fractions

View some videos

Details

Dimensions L x W x H: 2474 x 1483 x 1510 – 1690 mm
Weight: 430 kg
Screen area: 2x 1830 x 900 mm
Screen angle: 4° – 15°
Mesh aperture: 0,5 x 0,5 – 80 x 80 mm
Engine: Vibration motor, freely adjustable. 230V – 2x 0.52 kW
Maximum bucket width: 1200 mm
Capacity: 5 – 15 t/h
Dump height: 1520 – 1700 mm

Options

Conveyor belts: 2 – 3 – 4,5 – 6 M
Generator
Spraying system, including water pump and reservoir (50L)
Power pack (+solar panel)
