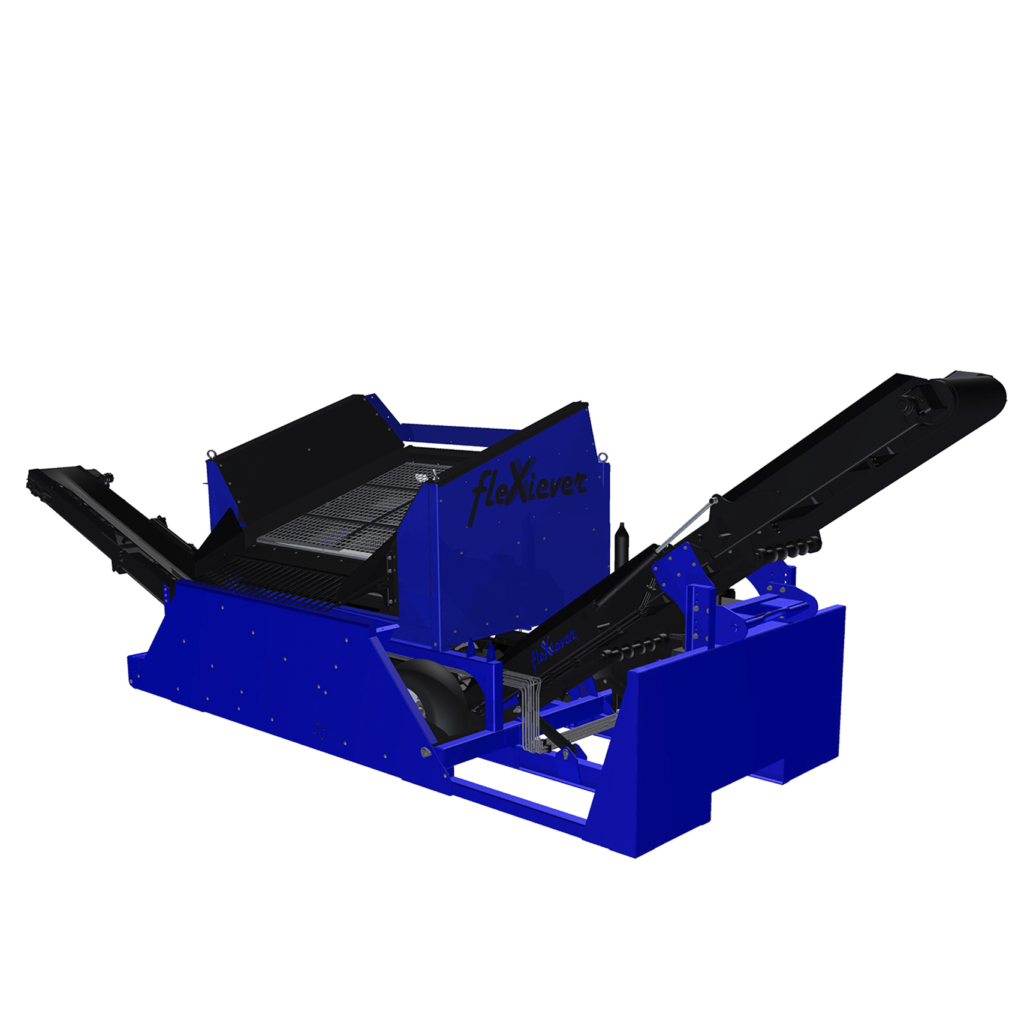

FleXiever Skid 3 fractions

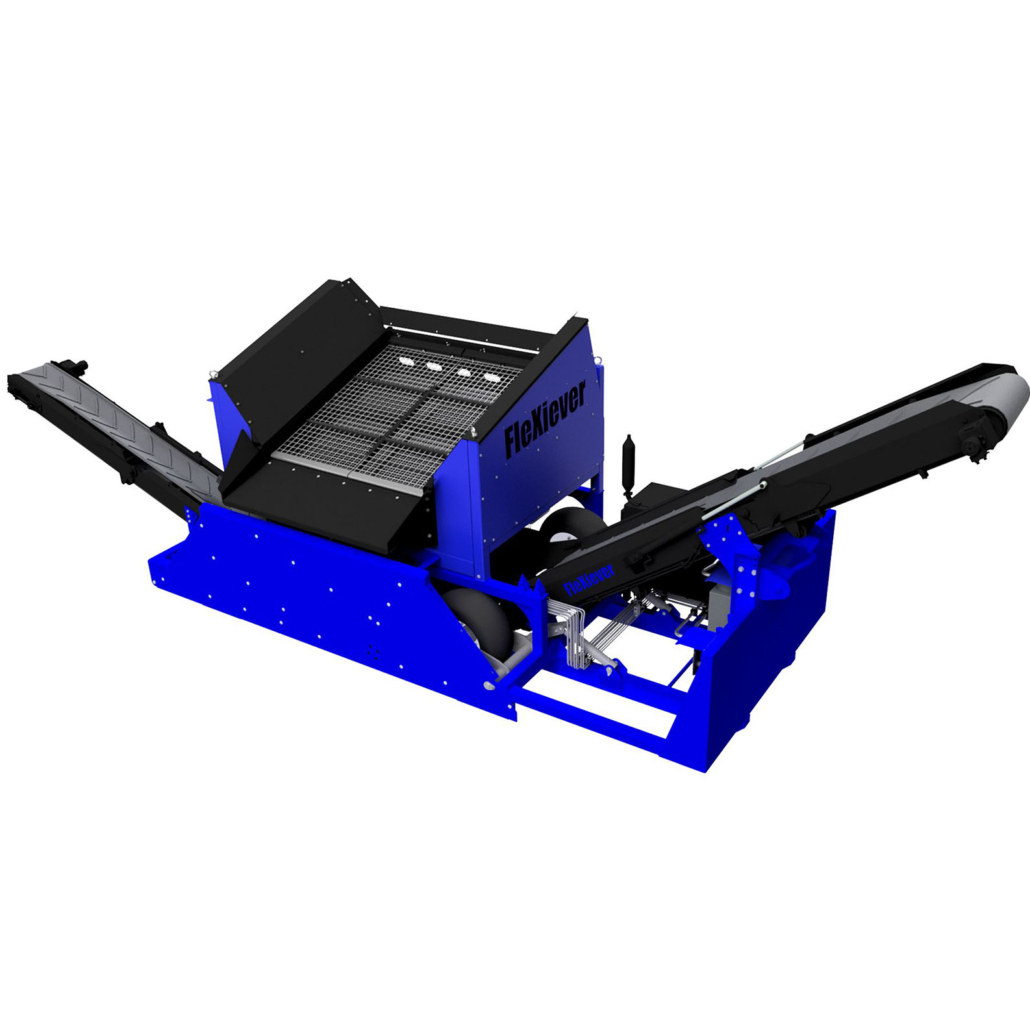

$FleXiever Skid 3 fractions screener$

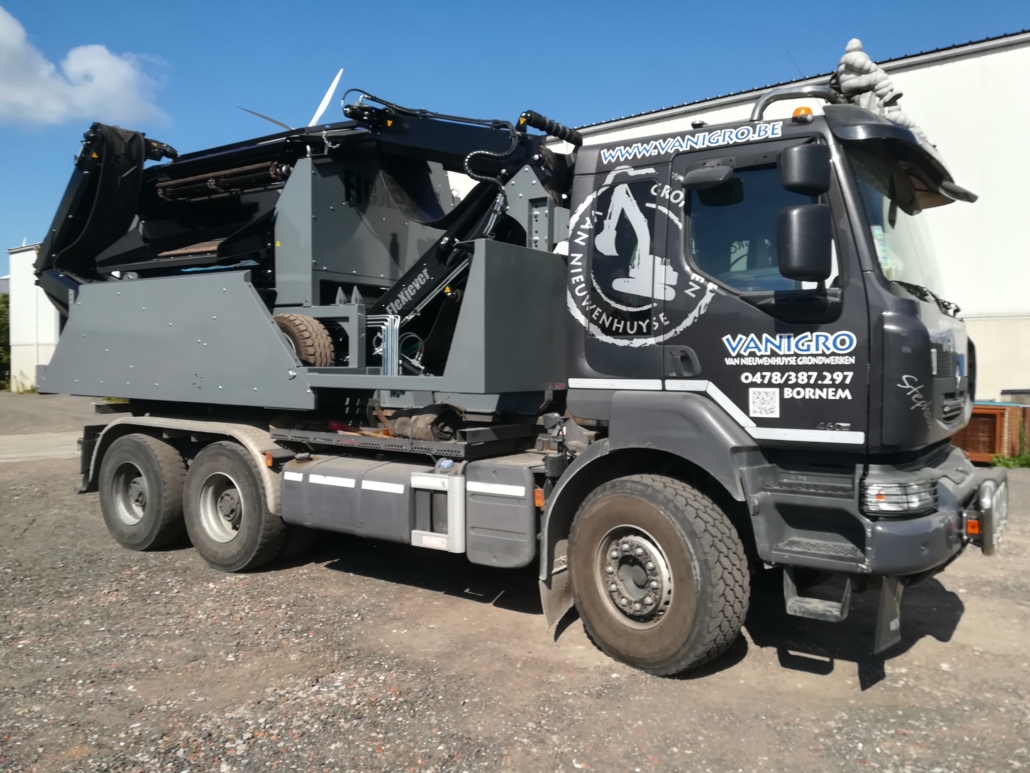

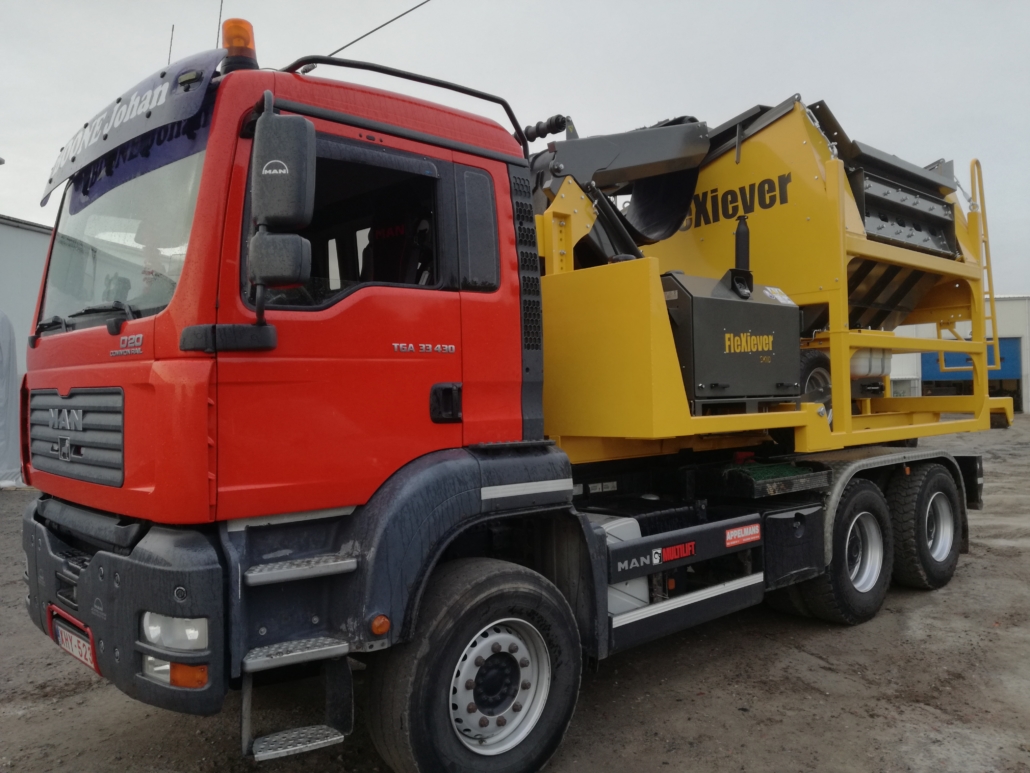

The FleXiever screener is mounted on a container chassis with two conveyors and can therefore easily be transported by a lorry with a container hook system. Perfect for large assignments on location.

In combination with the FleXiever receiving hopper, the SKID screener is THE high capacity machine in the midi-screener market.

>> Download the information sheet of FleXiever SKID 3 fractions

View some videos

Details

Dimensions L x W x H folded: 5825 x 2550 x 2594 mm
Dimensions L x W x H unfolded: 8875 x 2550 x 2878 mm
Weight: 7000 kg
Screen area: 1830 x 1830 mm
Screen angle: 17°
Mesh aperture: 0,5 x 0,5 – 80 x 80 mm
Engine: Kubota D1105 – 3 cylinders – 32 hp engine / Diesel: tank 70L with a consumption of 4L/h
Height attachment: Height 18 cm Slope -5° = 12°
Height attachment: Height 25 cm Slope -7° = 10°
Maximum bucket width: 2200 mm
Capacity: 50 – 120 t/h
Dump height: 231 cm

Options

Electrical engine
Drive system
Hopper
