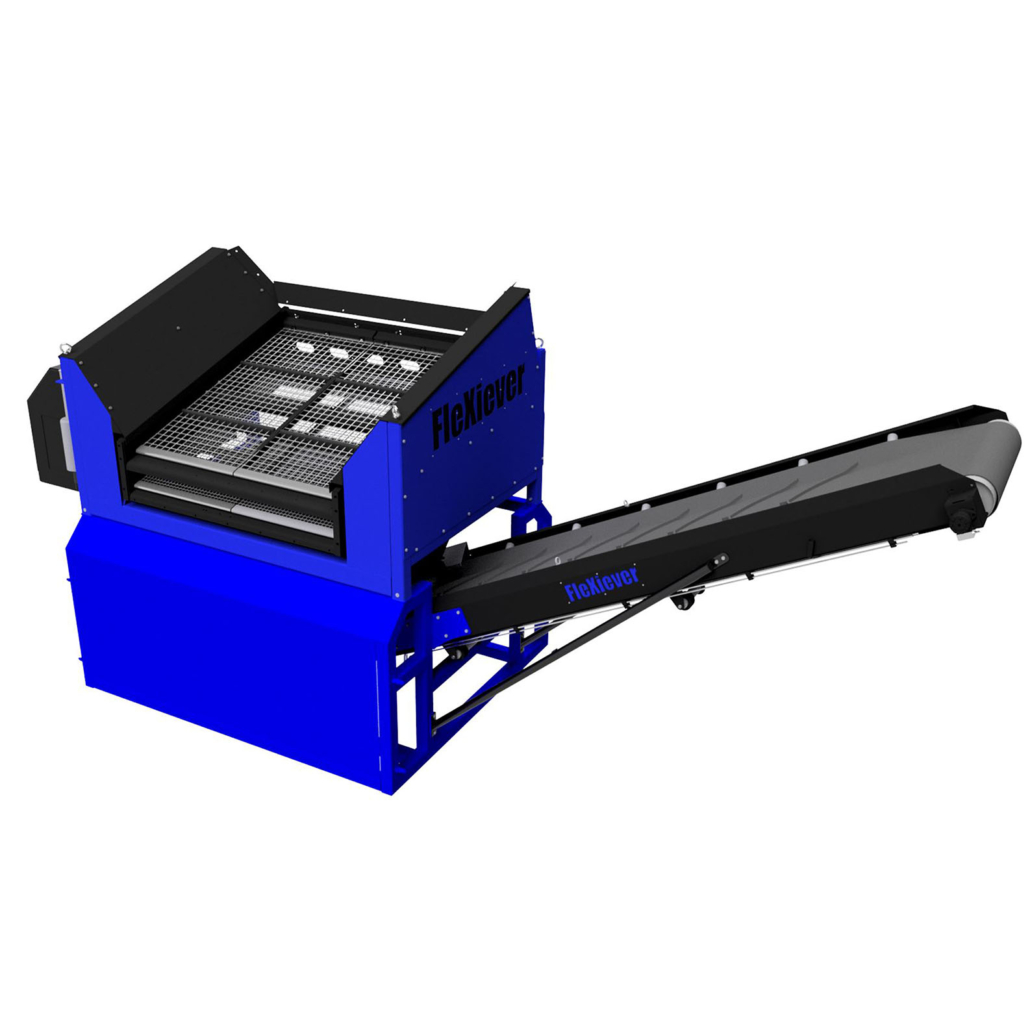

FleXiever Conveyor Fixed

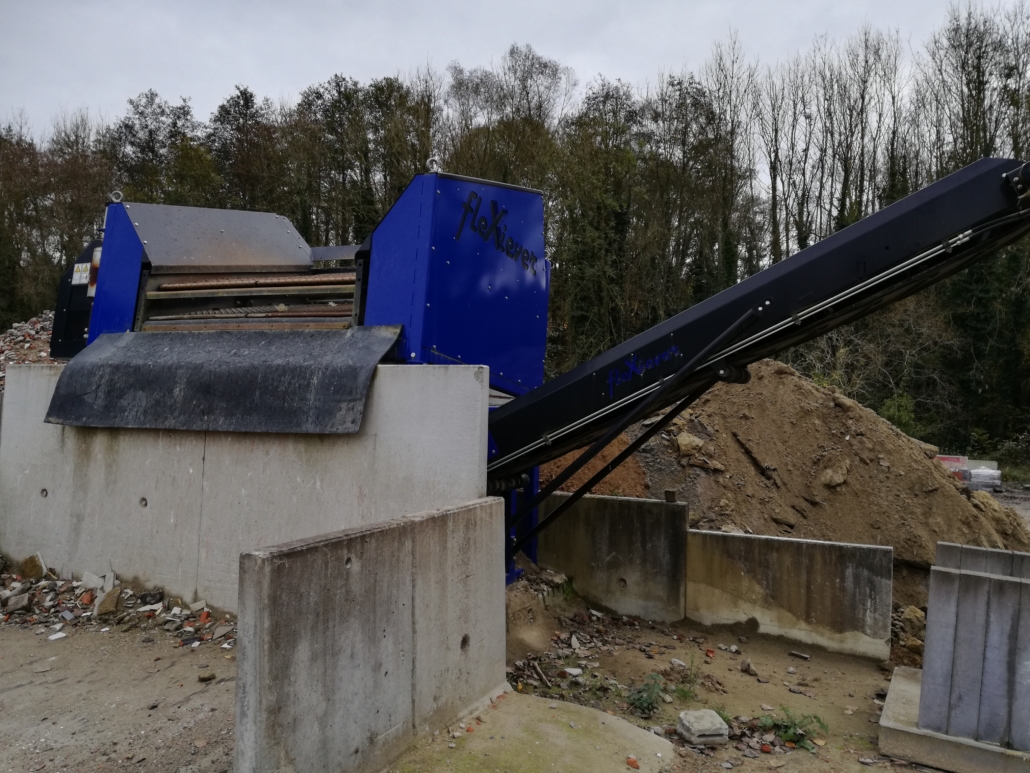

The FleXiever Conveyor Fixed is a combination of the FleXiever Fixed and the FleXiever Conveyor. The FleXiever unit is mounted on a 1.2 m high U-frame that is fitted with a conveyor belt. The FleXiever Fixed Conveyor is intended for use at a permanent location, but we have also fitted it with eye bolts to make transporting the screener easier.

>> Download the information sheet of FleXiever Conveyor Fixed

View some videos

Details

Dimensions L x W x H: 7020 x 2020 x 3160 cm
Weight : 3200 kg
Screen area: 1830 x 1830 mm
Screen angle: 17°
Mesh aperture : 0,5 x 0,5 – 80 – 80 mm
Engine: Diesel engine Hatz 1D81 – 14hp with max. consumption of 3L/h
Maximum bucket width: 2200 mm
Capacity: 40 – 120 t/h
Dump height: 288 cm

Options

Electric motor
Height attachment: 18 or 25 cm
Hopper outlet skirt plate
Oil tank: 30L
Side protection
3-fraction screener plate
Hopper
