FleXiever Mini Screener 3 fractions

The Mini Screener 3 Fractions is the ideal basic machine for compact screening in three fractions or developing a customized concept. The basic frame can be easily built in between existing installations or integrated into a fully customized construction. This offers many possibilities for the supply and discharge of materials, depending on your specific requirements.

With screening nets available from 0.5×0.5mm, the Mini Screener is suitable for a wide range of industrial applications. The quick and easy replaceability of the nets provides maximum flexibility, allowing the machine to quickly adapt to different materials and mesh openings.

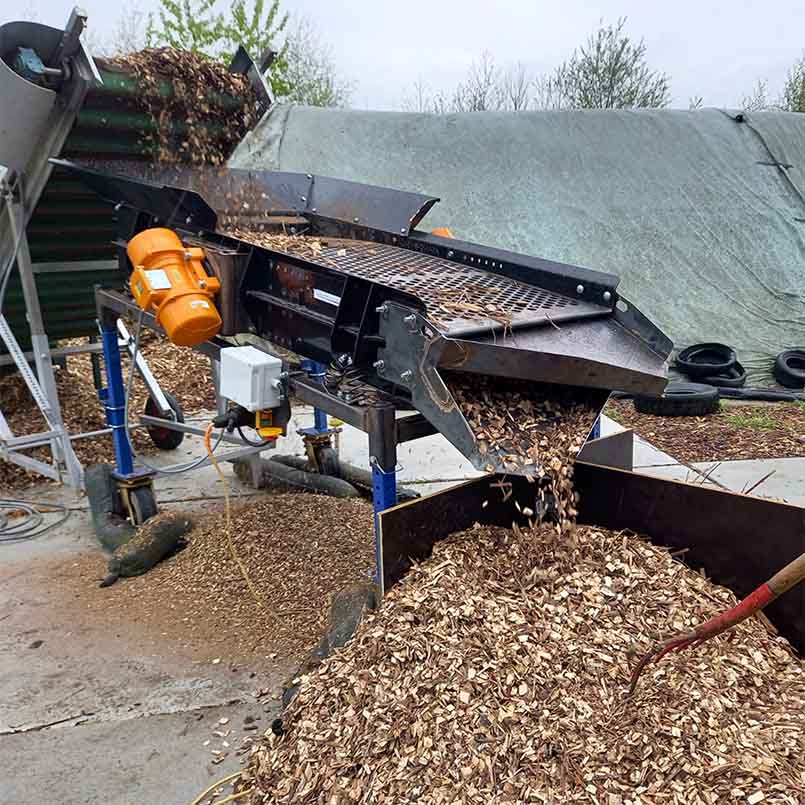

Flexiever Mini Screener 3 fractions in action

Technical properties

Dimensions (lxwxh): 2474 x 1483 x 1510 or 1690 mm

Weight: 430 kg

Screening area: 2 x 1830 x 900 mm (2 x 1.65 m²)

Screen angle: 4° - 15°

Mesh size: 0.5 x 0.5 mm to 80 x 80 mm

Engine: Electric - 220V

Maximum bucket width: 1200 mm

Capacity: 5 - 15 t/h

Discharge height: 152 - 170 cm

Possible options:

  • Custom solutions possible
  • Power generator
  • Conveyor belts: 2 - 3 - 4.5 - 6 m
  • Misting system
