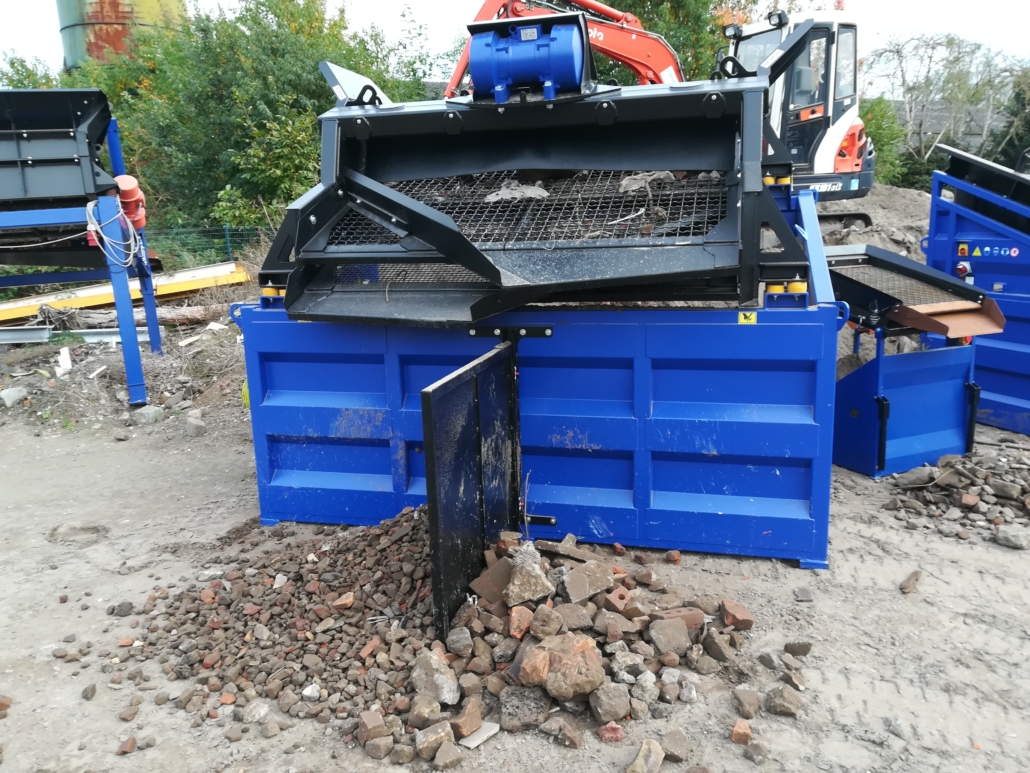

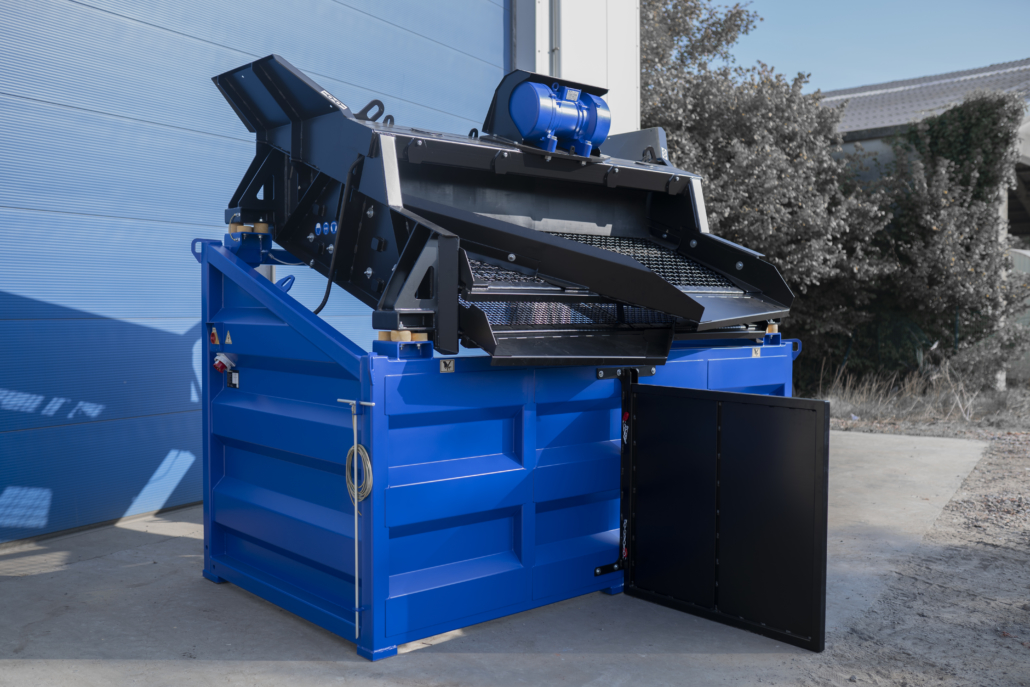

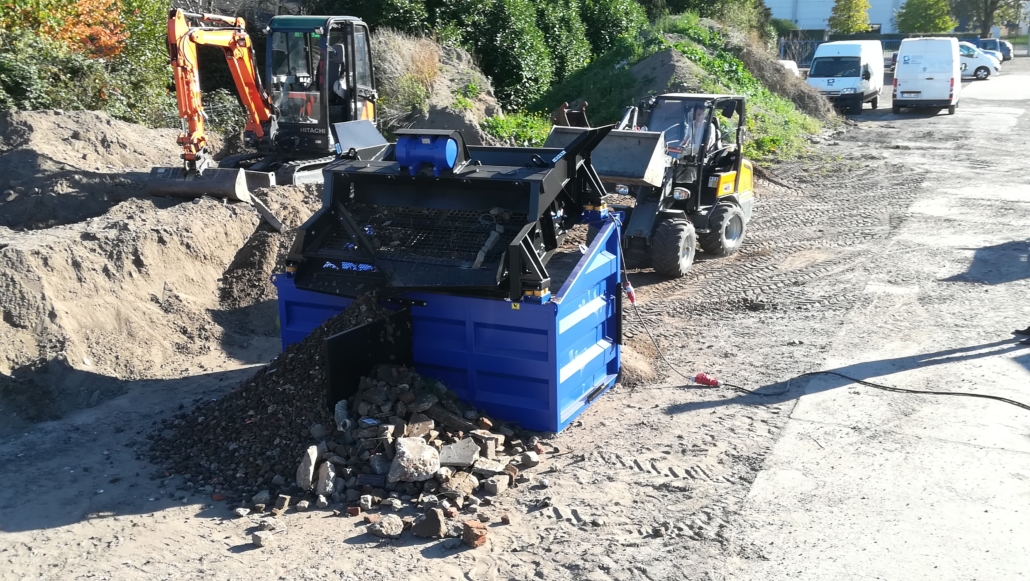

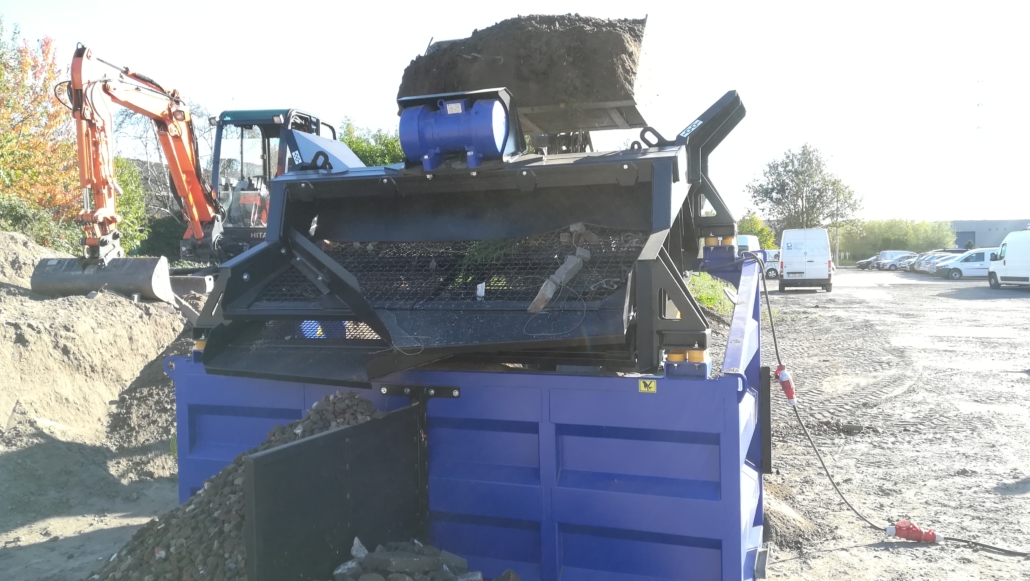

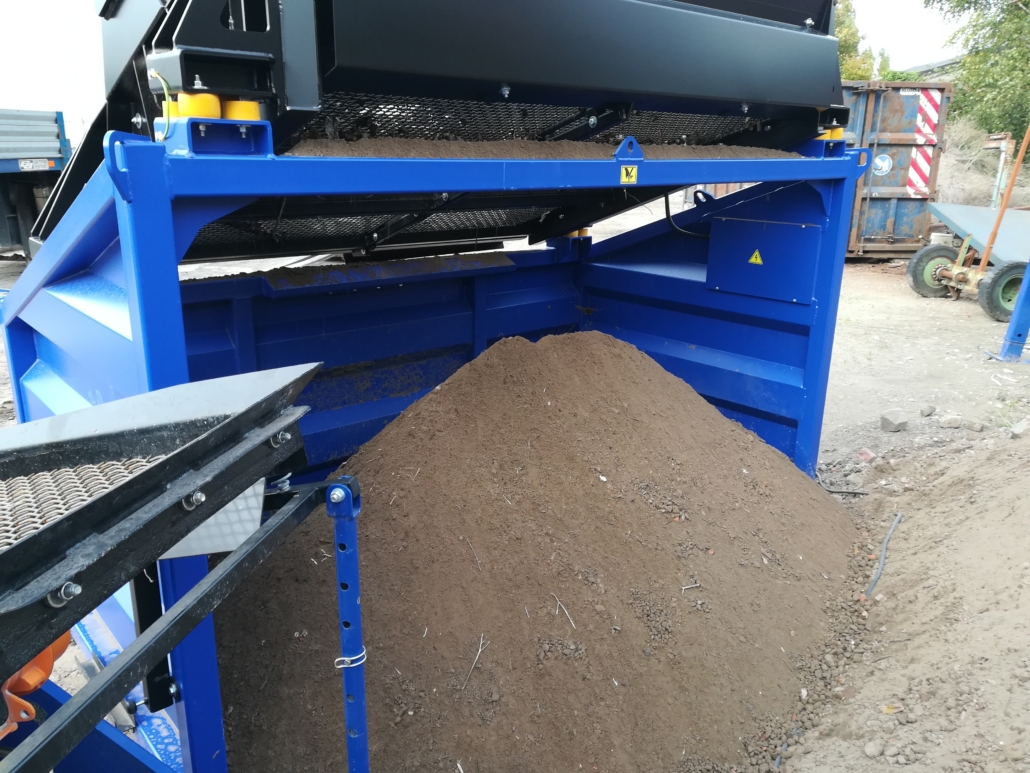

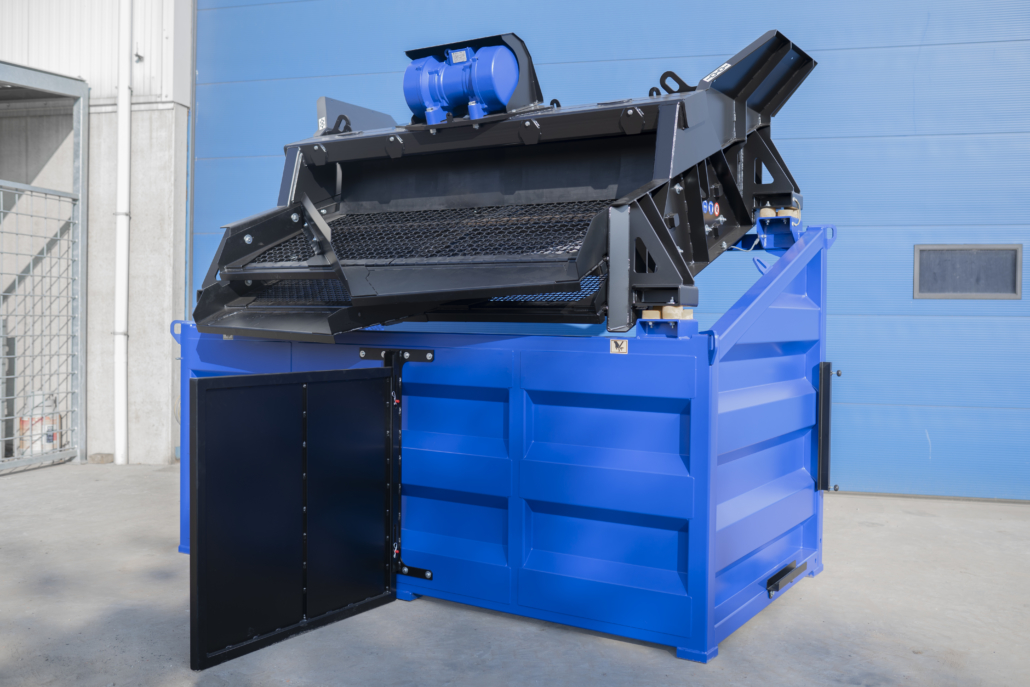

FleXiever MS30

You can load the FleXiever MS30 with a crane bucket of no more than 240 cm wide and it has a screen area of 2 × 3.2m². The machine, which weighs 1,400 kg, can be moved with a forklift truck using the standard supplied attachment. Also available with the option of screening in 3 fractions.

>> Download the information sheet of MS30

View some videos

Details

Dimensions L x W x H: 2810 x 1620 x 2480 mm
Weight: 1400 kg
Screen area: 2000 x 1600 mm (2×3,2m²)
Screen angle: 20°
Mesh aperture : 10/12 – 16 – 20 – 25 – 32 – 40 – 50mm
Engine: 3 x 400V – 1,1kW
Maximum bucket width: 2500 mm
Capacity: 40 – 80 t/h
Dump height: 223 cm

Options

Power circuit: 3×400 V – 6,5 kVA – Petrol
3-fraction frame
