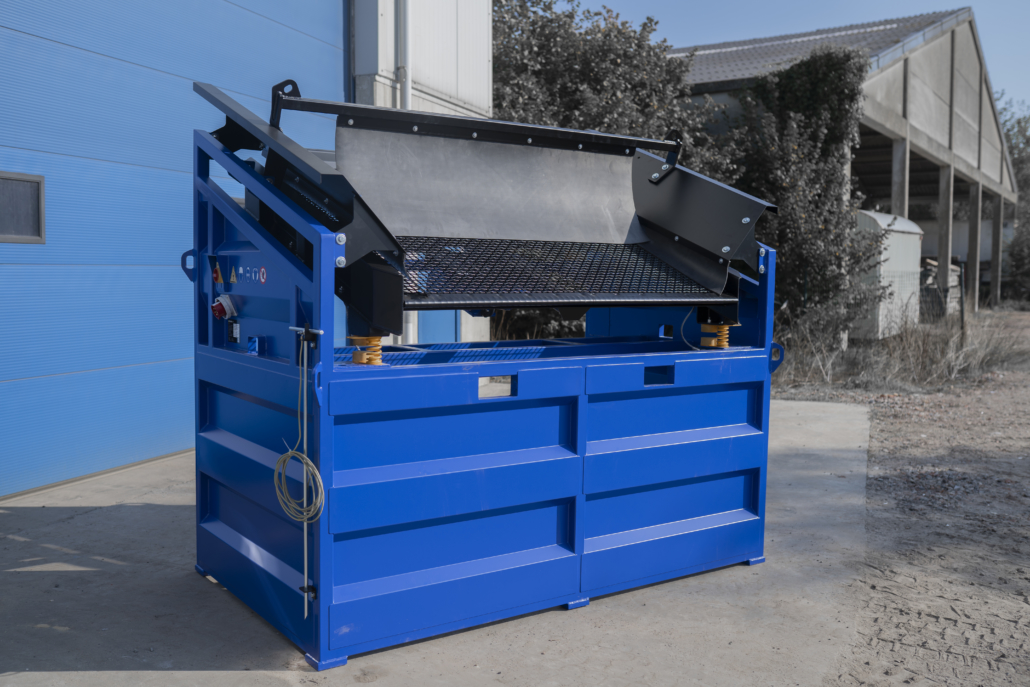

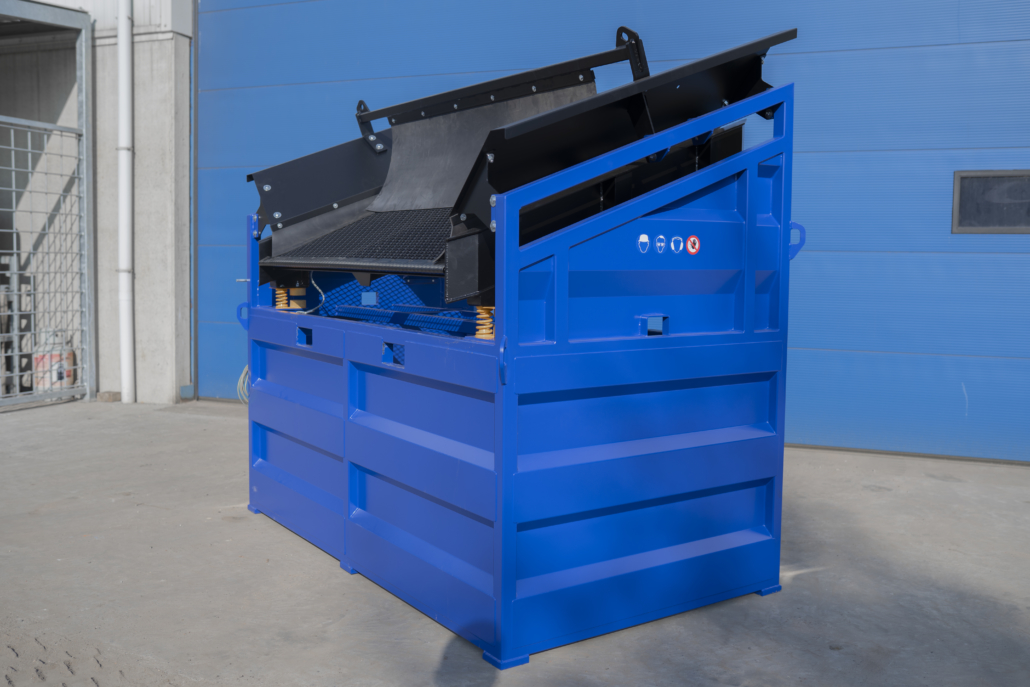

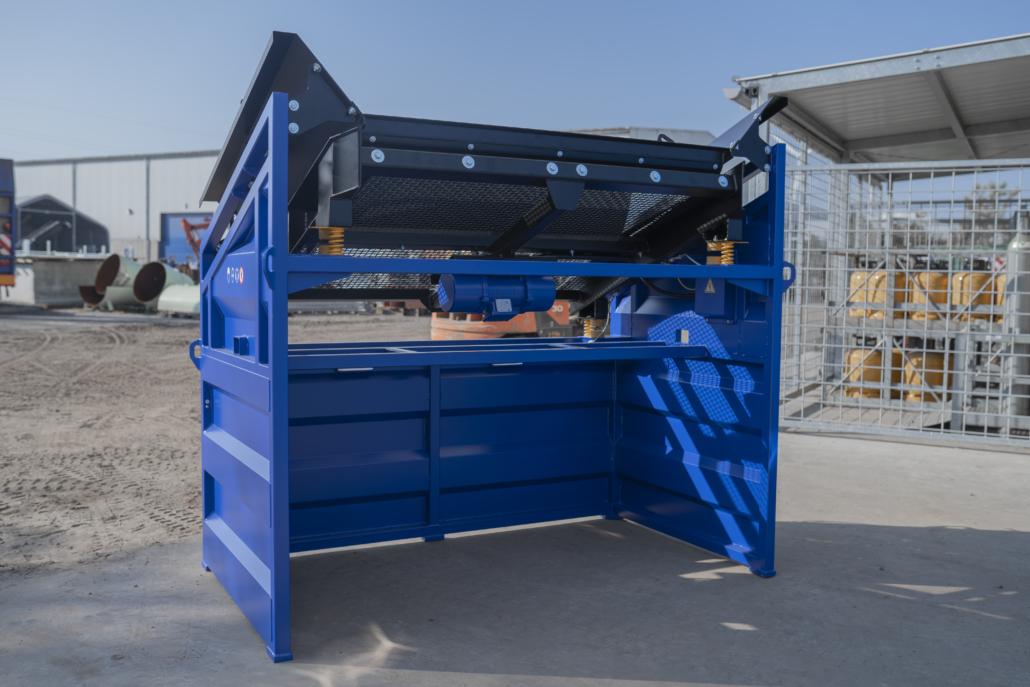

FleXiever MS10
The FleXiever MS10 is apart from the MS05 the smallest stationary vibrating screen in our range. It is a single deck vibrating screener weighing 500 kg, which you can easily take on location thanks to its light weight.
Details
- Dimensions L x W x H: 2100 x 1300 x 1970 mm
- Weight: 500 kg
- Screen area: 1500 x 1270 mm (2m²)
- Screen angle: 20°
- Mesh aperture: 10/12 – 16 – 20 – 25 – 32 – 40 – 50mm
- Engine: 3 x 400V – 0,55kW
- Maximum bucket width: 1900 mm
- Capacity: 10 – 20 t/h
- Dump height: 176 cm
Options
- Generator: 3 x 400 V – 6,5 kVA – Petrol
